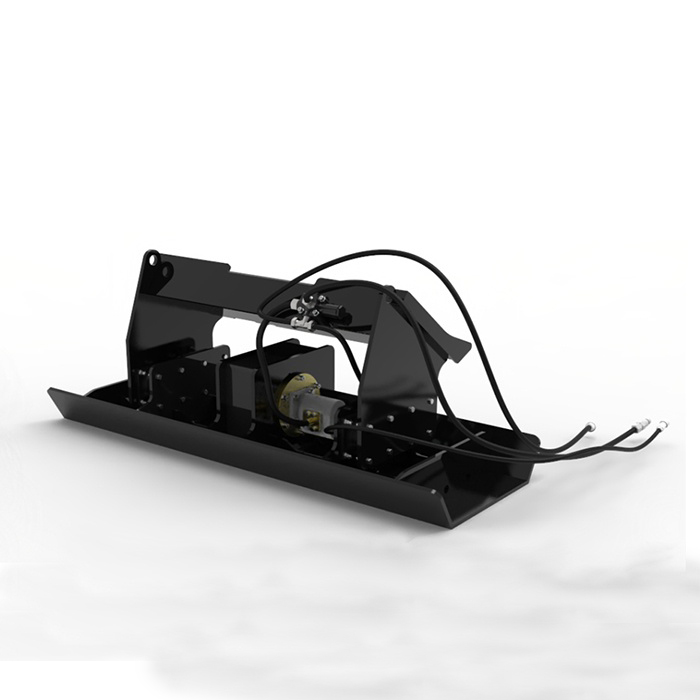

Vibratory Plate Compactor
The Skid Steer Vibratory Plate Compactor Attachment is engineered with the highest quality components.
SKU: VPC-11-72W
Vibratory Plate Compactor
The Skid Steer Vibratory Plate Compactor Attachment is engineered with the highest quality components.Using an eccentric, rotating weight that creates vibration and impulse energy, our skid-steer mounted vibratory plate compactor uses the same technology to provide the needed forces for effective flatwork soil compaction.
|
Num |
Item | Parameter |
|
1 |
Weight |
1100 lbs |
|
2 |
Width |
72 in |
| 3 | Height | 28 in |
| 4 | Length | 29 in |
| 5 | Exciting force | 33 kn |
| 6 | Impulse Force | 8,000 lbs |
| 7 | Hyd Flow Required | 12-21 gpm |
| 8 | Hyd Pressure Range | 2,000-2,800 psi |
| 9 | Base Plate Dimensions | 18 in x 72 in |
| 10 | Compaction Area | 9 sq ft |
| 11 | Recommended Carrier Weight | 4,000-14,000 |
| 12 | Compaction Plate | 3/4 in |
| 13 | Direction of Travel | Forward | Reverse |
