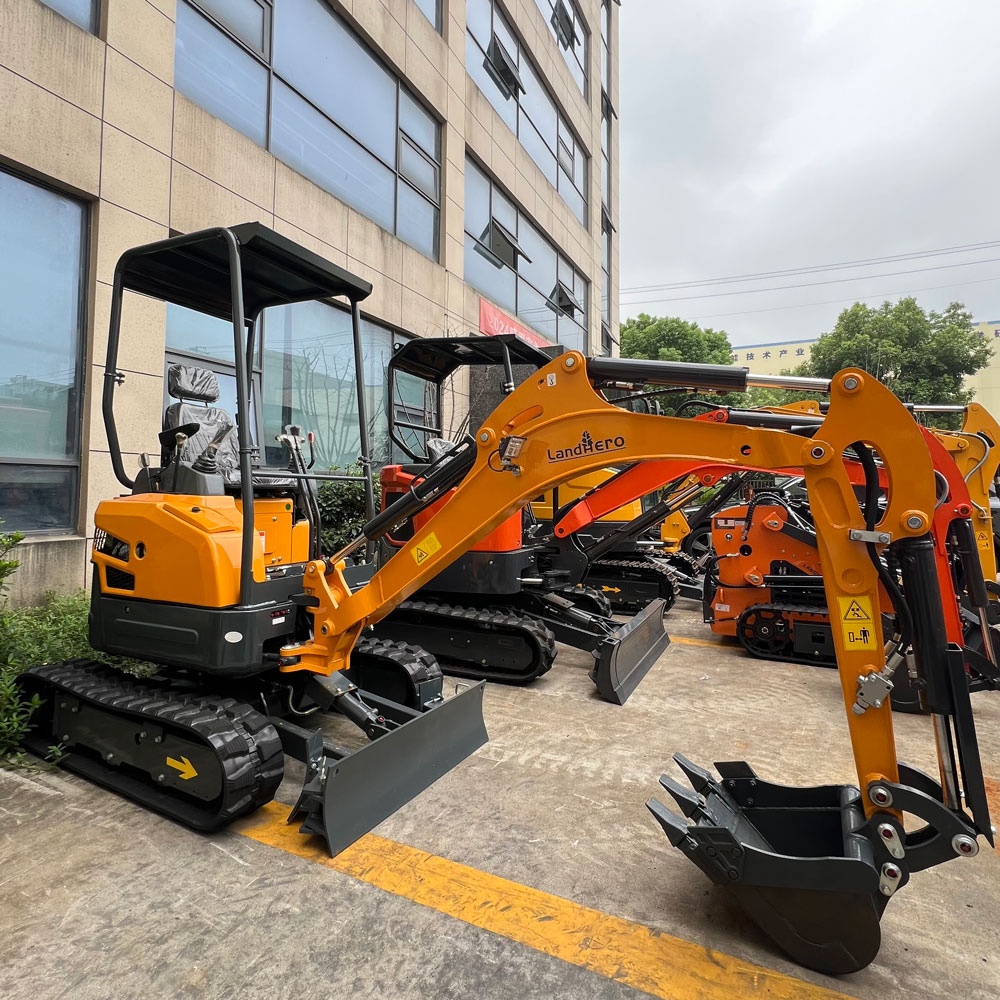

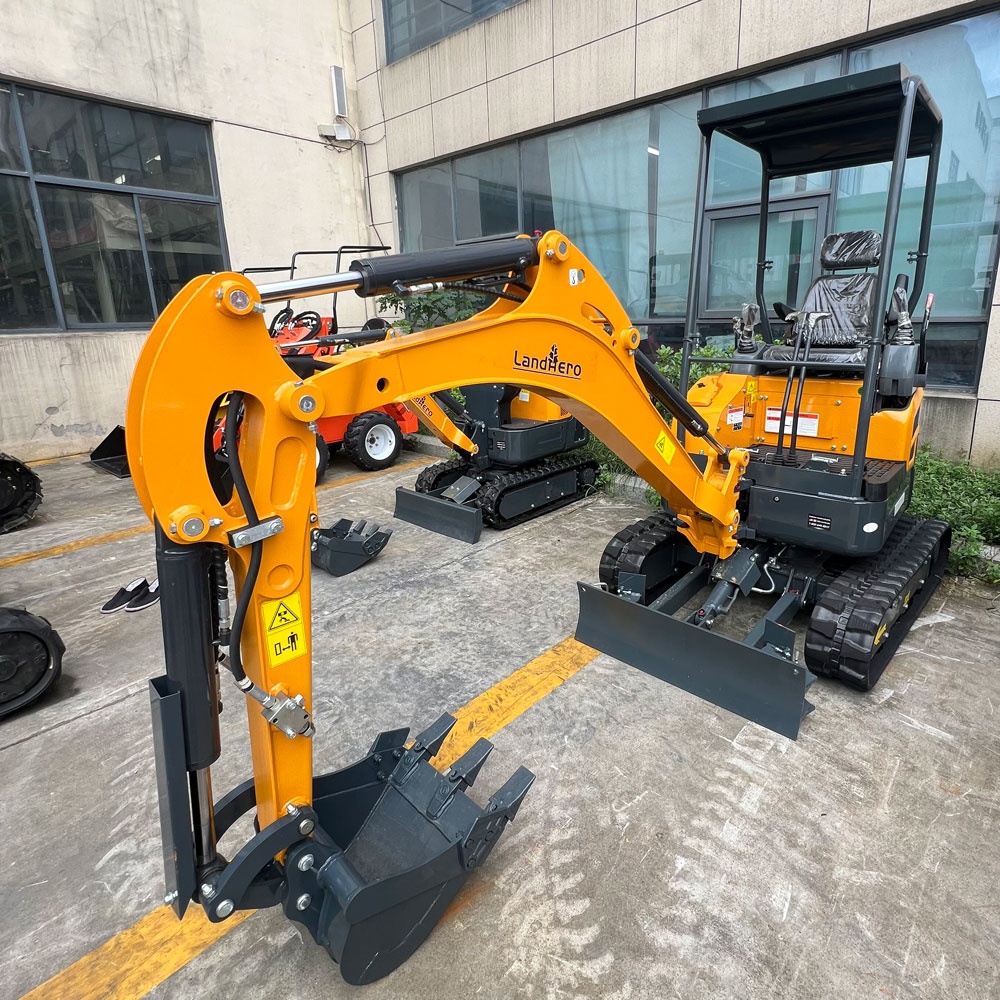

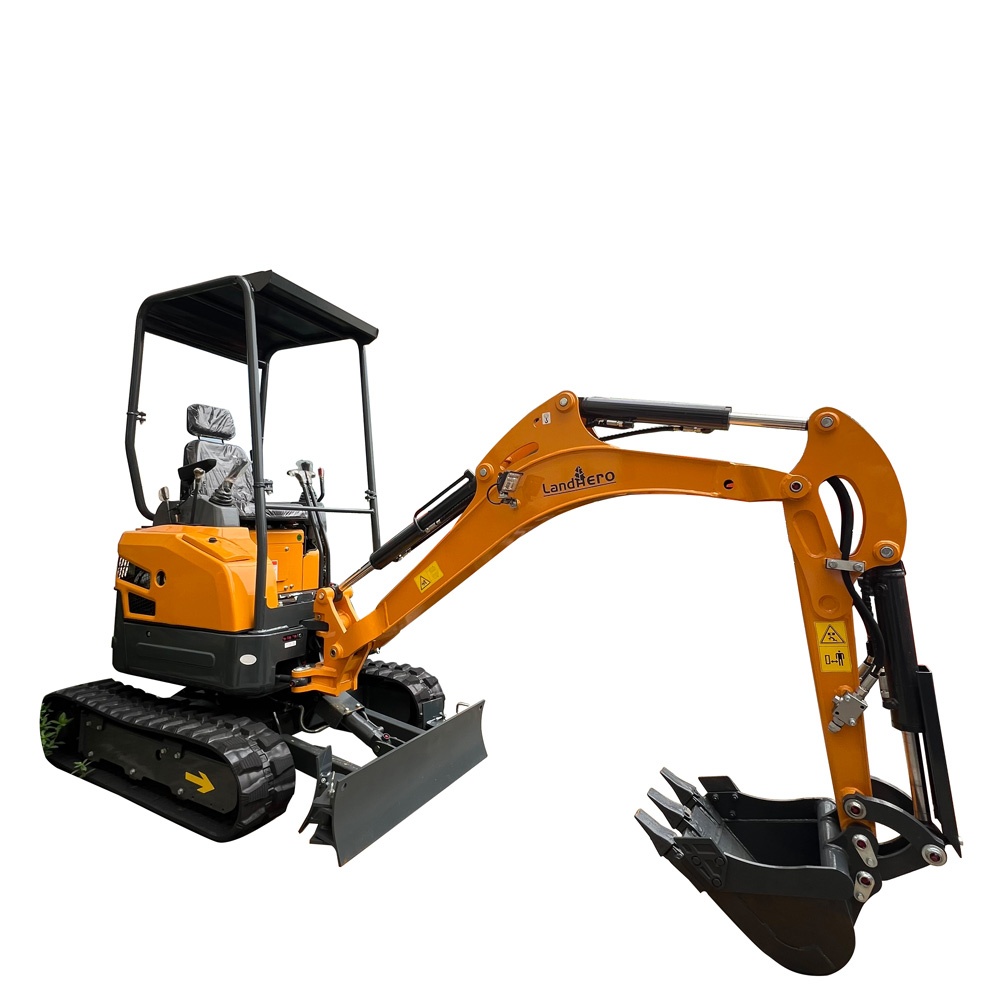

1.8T Excavator
Compact 1.9T excavator with Yanmar or Kubota engine.
Fast travel, strong digging force, excellent gradeability.
Built for durability and efficient performance.
1.8T Excavator
Compact 1.9T excavator with Yanmar or Kubota engine.
Fast travel, strong digging force, excellent gradeability.
Built for durability and efficient performance.
| Size Diagram | |
|---|---|
| Code | Value（mm） |
| A | 3570 |
| B | 990/1240 |
| C | 2250 |
| D | 990/1240 |
| E | 760/1010 |
| F | 2630 |
| G | 815 |
| H | 3540 |
| I | 2440 |
| J | 2310 |
| K | 1910 |
| L | 3900 |
| M | 1430 |
| N | 620 |
| O | 3840 |
| P | 245 |
| Q | 200 |
| R | 485 |
| S | 410 |
| Overall Dimensions | |||
|---|---|---|---|
| Parameter | Unit | Standard | Value |
| Total length (transport) | A | mm | 3570 |
| Total width (transport/operation) | B | mm | 990/1240 |
| Total height (transport) | C | mm | 2250 |
| Dozer blade width (retracted/extended) | D | mm | 990/1240 |
| Dozer blade height | mm | 268 | |
| Track gauge | E | mm | 760/1010 |
| Boom height | F | mm | 2630 |
| Swing center to track end | G | mm | 815 |
| Standard track shoe width | mm | 230 | |
| Min. ground clearance | mm | 145 | |
| Standard bucket width (with/without teeth) | mm | 450 (400) | |
| Total track length | mm | 1585 | |
| Wheel spacing | mm | 1230 | |
| Working Range | |||
|---|---|---|---|
| Parameter | Unit | Standard | Value |
| Max. digging height | H | mm | 3540 |
| Max. dumping height | I | mm | 2440 |
| Max. digging depth | J | mm | 2310 |
|
Max. vertical wall digging depth |
K | mm | 1910 |
| Max. digging reach | L | mm | 3900 |
| Min. swing radius (front) | M | mm | 1430 |
| Min. swing radius (rear) | N | mm | 620 |
| Max. ground digging reach | O | mm | 3840 |
|
Max. dozing height |
P | mm | 245 |
| Max. dozing depth | Q | mm | 200 |
| Bucket horizontal left shift | R | mm | 485 |
| Bucket horizontal right shift | S | mm | 410 |
| Performance Parameters | |||
|---|---|---|---|
| Parameter | Standard | Value | |
| Operating weight | kg | 1760 | 1920 |
| Bucket capacity | m³ | 0.04 | |
| Engine model | Yanmar 3TNV88 | Kubota Q202 | |
| Displacement | L(cc) | 0.854 | 0.898 |
| Rated power | KW/rpm | 10.3 | 11.8 |
| Travel speed (low/high) | km/h | 2/3.5 | |
| Swing speed | r/min | 8.2 | 7.5 |
| Swing angle | deg(°) | 65/58 | |
|
Gradeability |
% | 58 (30) | |
| Ground pressure | kpa | 25(0.24) | 25.5(0.245) |
| Bucket digging force | KN | 14.8 | |
| Fuel tank capacity | L | 18 | |
